| 브랜드 이름: | TICO |
| 모델 번호: | STC-EXJ-2LF |
| 모크: | 1세트 |
| 가격: | 협상 가능 |
| 배달 시간: | 20~30일 |
| 지불 조건: | 티/티 |

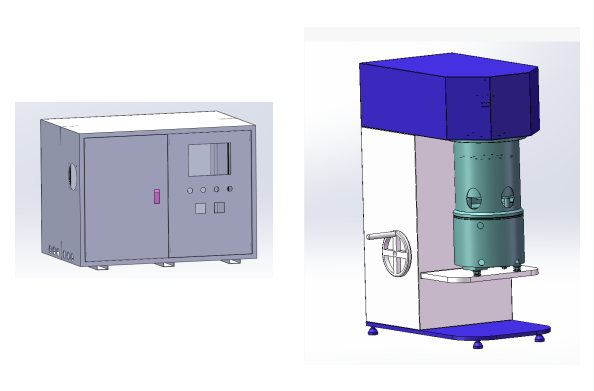

2L Double Planetary Vacuum Mixer Used in Glovebox
Product Introduction
The machine is a highly efficient mixing device that combines vacuum low-speed mixing and high speed dispersion, making it suitable for mixing various solvents and powders.
Key Features
● Planetary mixer featuring a twisted-frame paddle, equipped with high-speed disperser and a wall scraper, ensures no unmixed zones.
● The vacuum environment can effectively eliminate the gas bubbles generated during the mixing, with excellent vacuum retention performance.
● Low-speed stirring achieves macroscopic mixing through combined revolution and self-rotation of the paddle; high-speed disperser achieves microscopic mixing via shear force.
● The machine can perform multi-segment speed operation, rotation speed and time can be set for each segment.
● The effective bucket volume is 2L, and made by high-quality SUS304 stainless steel, resistant to acids and alkalis.
● Equipped with a spotlight, convenient operation and ensures safety during vacuum mixing.
●Jacketed mixing bucket design, can filling the circulating cooling water into the interlayer, suitable for various process requirements.
● PLC controlled with HMI interface enables automated operation with simple and convenient control.
● Compact design, suitable for operation inside a glovebox.
Technical Parameter
| Model | STC-EXJ-2LF |
| Voltage | Single phase, 220V |
| Total power | 3KW |
| Effective volume | 2L |
| Vacuum level | -0.098 MPa |
| Maximum revolution speed | 70rpm |
| Dimension | L640 * W450 * H780mm |
| Weight | 320kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
